微服務分佈式事務解決方案-springboot整合分佈式seata1.3.0

概述

Seat是螞蟻金服和阿里巴巴聯合推出的一個開源的分佈式事務框架，在阿里雲商用的叫做GTS。
項目地址：https://github.com/longxiaonan/springcloud-demo

官網：http://seata.io/zh-cn/index.html

一個XID和三個概念：

Transaction ID (XID) : 全局唯一的事務ID
Transaction Coordinator (TC) : 事務協調器，維護全局事務的運行狀態
Transaction Manager (TM)：控制全局事務的邊界，負責開啟一個全局事務
Resource Manager (RM)：控制分支事務，負責分支註冊、狀態彙報，並接受TC的提交或者回滾操作

事務分為全局事務和本地事務。

全局事務通過XID（全局唯一事務id）來標識。分支通過分支id和資源id來標識，標籤每個分支事務都標有XID來標識是屬於哪個全局事務。

事務流程如下：

TM向TC申請開啟一個全局事務，全局事務創建成功並且生成一個全局唯一的XID;
XID在微服務調用鏈路的上下文中傳播；
RM向TC註冊分支事務，彙報事務資源準備狀態，將其納入XID對應全局事務的管轄；
RM執行業務邏輯；
TM結束分佈式事務，事務一階段結束，通知TC針對XID的全局提交或回滾決議；
TC彙總事務信息，決定分佈式事務是提交還是回滾；
TC調度XID下管轄的RM的分支事務完成提交或者回滾請求，事務二階段結束。

TC，TM和RM對應到實際服務節點

全局事務需要在服務調用方的service上開啟，服務調用方就是TM，其他被調用方就是RM。

兩段提交的詳細過程

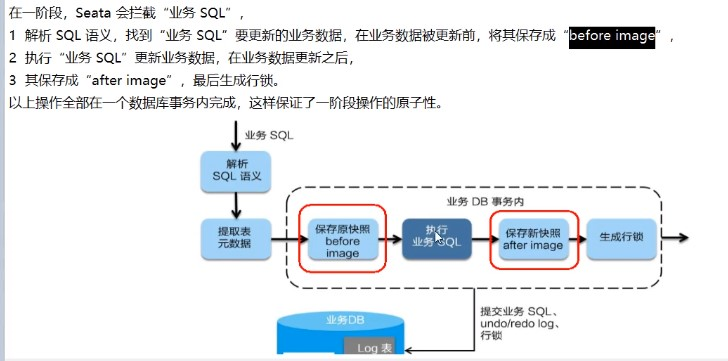

一階段加載：

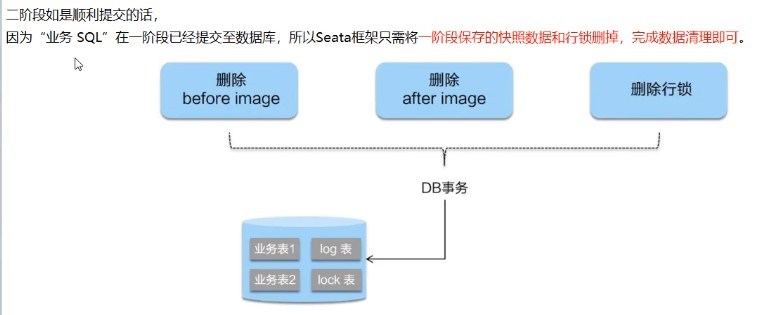

二階段提交

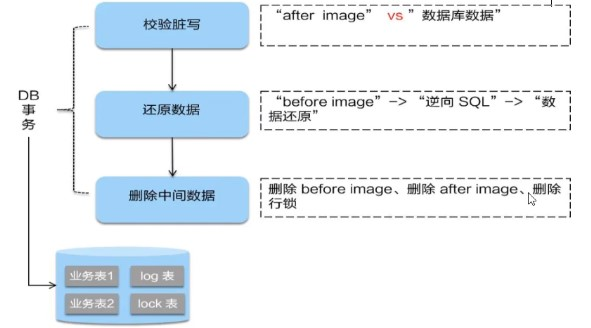

二階段提交失敗，則進行回滾

下載seata

下載地址：http://seata.io/zh-cn/blog/download.html

本文采用的是 seata 1.3.0 (2020-07-14)

和springCloudAlibaba版本支持說明：

https://github.com/alibaba/spring-cloud-alibaba/wiki/%E7%89%88%E6%9C%AC%E8%AF%B4%E6%98%8E

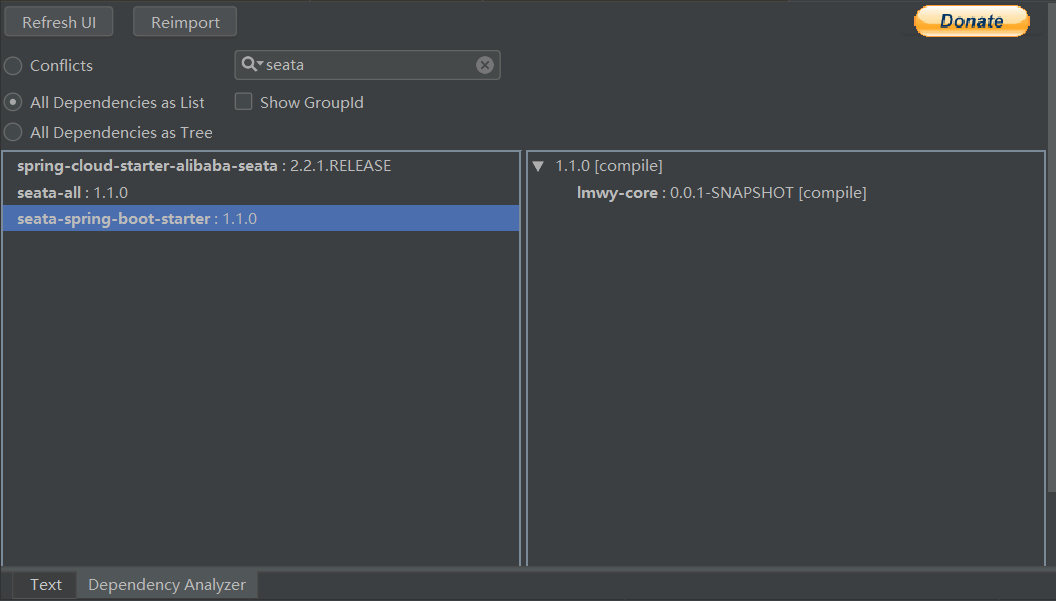

添加seata依賴（建議單選）

依賴seata-all
依賴seata-spring-boot-starter，支持yml、properties配置(.conf可刪除)，內部已依賴seata-all
依賴spring-cloud-alibaba-seata，內部集成了seata，並實現了xid傳遞

因為是微服務方式，故添加依賴：

spring-cloud-starter-alibaba-seata推薦依賴配置方式

            <dependency>
                <groupId>io.seata</groupId>
                <artifactId>seata-spring-boot-starter</artifactId>
                <version>最新版</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
                <version>2.2.1.RELEASE</version>
                <exclusions>
                    <exclusion>
                        <groupId>io.seata</groupId>
                        <artifactId>seata-spring-boot-starter</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>

文件配置

修改registry.type、config.type

文件在下載的seata包下

啟動包: seata-->conf-->file.conf，修改store.mode="db或者redis"
源碼: 根目錄-->seata-server-->resources-->file.conf，修改store.mode="db或者redis"

啟動包: seata-->conf-->file.conf，修改store.db或store.redis相關屬性。
源碼: 根目錄-->seata-server-->resources-->file.conf，修改store.db或store.redis相關屬性。

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "file"

  nacos {
    application = "seata-server"
    serverAddr = "127.0.0.1:8848"
    group = "SEATA_GROUP"
    namespace = ""
    cluster = "default"
    username = ""
    password = ""
  }
  ...
  config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "127.0.0.1:8848"
    namespace = ""
    group = "SEATA_GROUP"
    username = ""
    password = ""
  }
 }

改成

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    application = "seata-server"
    serverAddr = "localhost:8848"
    namespace = "public"
    cluster = "default"
    username = ""
    password = ""
  }
...
  config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "nacos"

  nacos {
    serverAddr = "localhost:8848"
    namespace = "public"
    group = "SEATA_GROUP"
    username = ""
    password = ""
  }
}

store.mode 和對應的nacos和db連接配置

file.conf

注意數據源類型，比如springboot的默認數據源是hikari而不是druid

store {
  ## store mode: file、db、redis
  mode = "file"
  ...
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
    datasource = "druid"
    ## mysql/oracle/postgresql/h2/oceanbase etc.
    dbType = "mysql"
    driverClassName = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "mysql"
    password = "mysql"
  }
 ...
}

修改為：

store {
  ## store mode: file、db、redis
  mode = "db"

  ...

  ## database store property
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
    datasource = "druid"
    ## mysql/oracle/postgresql/h2/oceanbase etc.
    dbType = "mysql"
    driverClassName = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata"
    user = "root"
    password = "123456"
  }
  ...
}

配置nacos-config.txt

文件地址：https://github.com/seata/seata/blob/1.3.0/script/config-center/config.txt

官網seata-server-0.9.0的conf目錄下有該文件，官網seata-server-0.9.0的conf目錄下有該文件，後面的版本無該文件需要手動下載執行。

修改為自己的服務組名，各個微服務之間使用相同的服務組名，務必保持一致！

service.vgroupMapping.my_test_tx_group=default
service.vgroupMapping.my_test_tx_group1=default
service.vgroupMapping.my_test_tx_group2=default
service.vgroupMapping.my_test_tx_group3=default

配置seata服務器mysql鏈接信息，注意數據源類型，比如springboot的默認數據源是hikari而不是druid

store.mode=db
...
store.db.datasource=druid
store.db.dbType=mysql
store.db.url=jdbc:mysql://127.0.0.1:3306/seata?useUnicode=true
store.db.user=root
store.db.password=123456

執行nacos-config.sh腳本

腳本地址：https://github.com/seata/seata/blob/1.3.0/script/config-center/nacos/nacos-config.sh

官網seata-server-0.9.0的conf目錄下有該文件，後面的版本無該文件需要手動下載執行。

如果本地是windows，使用git工具git bash執行nacos-config.sh腳本：

sh nacos-config.sh -h localhost -p 8848 -g SEATA_GROUP -u nacos -w nacos

執行完成後nacos會新增seata配置。

需要注意config.txt中目錄的對應關係，否則可能提示finished，其實未執行成功！

$ sh nacos-config.sh -h localhost -p 8848
set nacosAddr=localhost:8848
set group=SEATA_GROUP
cat: /d/soft/config.txt: No such file or directory
=========================================================================
 Complete initialization parameters,  total-count:0 ,  failure-count:0
=========================================================================
 Init nacos config finished, please start seata-server.

Seata Server需要依賴的表

表的地址：https://github.com/seata/seata/blob/develop/script/server/db/mysql.sql

新建數據庫seata, 創建如下三個表，用於seata服務， 0.0.9版本才有這個文件1.0.0版本後需要手動添加。

-- the table to store GlobalSession data
DROP TABLE IF EXISTS `global_table`;
CREATE TABLE `global_table` (
  `xid` VARCHAR(128)  NOT NULL,
  `transaction_id` BIGINT,
  `status` TINYINT NOT NULL,
  `application_id` VARCHAR(32),
  `transaction_service_group` VARCHAR(32),
  `transaction_name` VARCHAR(128),
  `timeout` INT,
  `begin_time` BIGINT,
  `application_data` VARCHAR(2000),
  `gmt_create` DATETIME,
  `gmt_modified` DATETIME,
  PRIMARY KEY (`xid`),
  KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
  KEY `idx_transaction_id` (`transaction_id`)
);

-- the table to store BranchSession data
DROP TABLE IF EXISTS `branch_table`;
CREATE TABLE `branch_table` (
  `branch_id` BIGINT NOT NULL,
  `xid` VARCHAR(128) NOT NULL,
  `transaction_id` BIGINT ,
  `resource_group_id` VARCHAR(32),
  `resource_id` VARCHAR(256) ,
  `lock_key` VARCHAR(128) ,
  `branch_type` VARCHAR(8) ,
  `status` TINYINT,
  `client_id` VARCHAR(64),
  `application_data` VARCHAR(2000),
  `gmt_create` DATETIME,
  `gmt_modified` DATETIME,
  PRIMARY KEY (`branch_id`),
  KEY `idx_xid` (`xid`)
);

-- the table to store lock data
DROP TABLE IF EXISTS `lock_table`;
CREATE TABLE `lock_table` (
  `row_key` VARCHAR(128) NOT NULL,
  `xid` VARCHAR(96),
  `transaction_id` LONG ,
  `branch_id` LONG,
  `resource_id` VARCHAR(256) ,
  `table_name` VARCHAR(32) ,
  `pk` VARCHAR(36) ,
  `gmt_create` DATETIME ,
  `gmt_modified` DATETIME,
  PRIMARY KEY(`row_key`)
);

AT模式下每個業務數據庫需要創建undo_log表，用於seata記錄分支的回滾信息

表的地址：https://github.com/seata/seata/blob/1.3.0/script/client/at/db/mysql.sql

-- 注意此處0.3.0+ 增加唯一索引 ux_undo_log
CREATE TABLE `undo_log` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

運行 Seata-server

Linux/Unix/Mac

sh seata-server.sh -p $LISTEN_PORT -m $STORE_MODE -h $IP(此參數可選)

Windows

cmd seata-server.bat -p $LISTEN_PORT -m $STORE_MODE -h $IP(此參數可選)

$LISTEN_PORT: Seata-Server 服務端口
$STORE_MODE: 事務操作記錄存儲模式：file、db
$IP(可選參數): 用於多 IP 環境下指定 Seata-Server 註冊服務的IP，配置自己的ip即可

測試的時候直接雙擊運行seata-server.bat 即可。

# linux
nohup ./seata-server.sh -h 192.168.1.4 -p 8092 &
# windows cmd
seata-server.bat -m file -h 192.168.1.4 -p 8092

用例

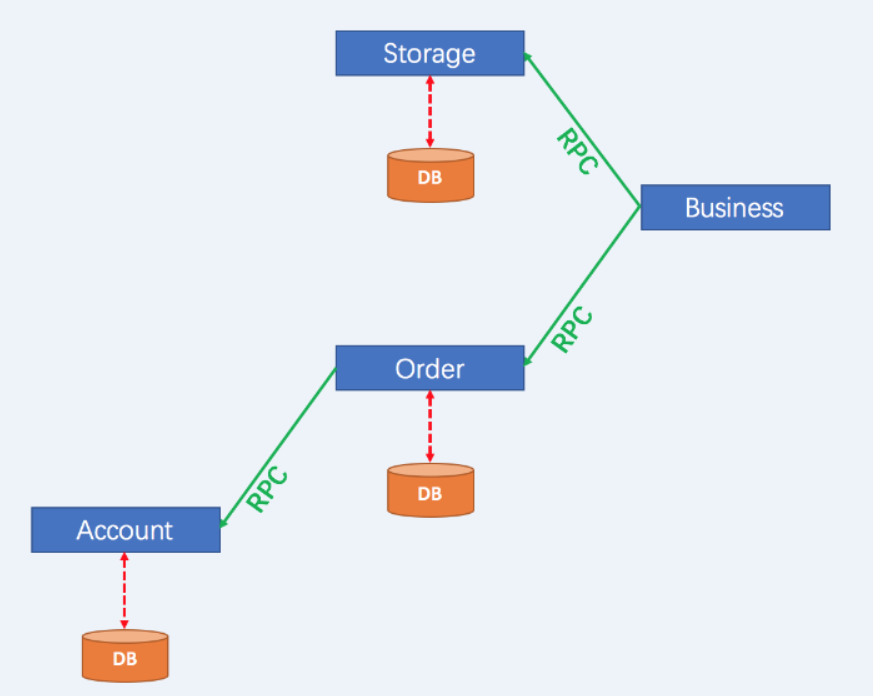

參考官網中用戶購買商品的業務邏輯。整個業務邏輯由3個微服務提供支持：

存儲服務：扣除給定商品的存儲數量。
訂單服務：根據購買請求創建訂單。
帳戶服務：借記用戶帳戶的餘額。

項目地址：

https://github.com/longxiaonan/springcloud-demo

添加依賴：

<!-- 分佈式事務seata包 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <version>2.2.1.RELEASE</version>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-all</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-spring-boot-starter</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>

配置seata：

seata:
  enabled: true
  application-id: ${spring.application.name}
  txServiceGroup: my_test_tx_group
  # 是否開啟數據源自動代理 如果不開啟設置為false
  enable-auto-data-source-proxy: true
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: localhost:8848
      namespace:
  #      userName: "nacos"
  #      password: "nacos"
  config:
    type: nacos
    nacos:
      namespace:
      serverAddr: localhost:8848
      group: SEATA_GROUP
#      userName: "nacos"
#      password: "nacos"

在代碼中通過註解開啟：

@GlobalTransactional(rollbackFor = Exception.class)

請求邏輯

commint測試接口：http://127.0.0.1:8008/purchase/commit接口是可以正常執行完成的方法

rollback測試接口：http://127.0.0.1:8008/purchase/rollback接口是會發生異常並正常回滾的方法

測試

當未開啟seata服務rollback測試：

未開啟seata服務，啟動業務服務節點，業務節點的console log如下提示：

2020-07-25 10:59:50.492 ERROR 11284 --- [eoutChecker_1_1] i.s.c.r.netty.NettyClientChannelManager : no available service 'default' found, please make sure registry config correct
2020-07-25 10:59:50.654 ERROR 11284 --- [eoutChecker_2_1] i.s.c.r.netty.NettyClientChannelManager : no available service 'default' found, please make sure registry config correct

此時，訪問rollback測試接口，controller不能進入加了@GlobalTransitional的service，無任何服務被執行和調用。console log如下報錯：

io.seata.common.exception.FrameworkException: No available service
     at io.seata.core.rpc.netty.AbstractNettyRemotingClient.loadBalance(AbstractNettyRemotingClient.java:257)
     at io.seata.core.rpc.netty.AbstractNettyRemotingClient.sendSyncRequest(AbstractNettyRemotingClient.java:133)
     at io.seata.tm.DefaultTransactionManager.syncCall(DefaultTransactionManager.java:95)
     at io.seata.tm.DefaultTransactionManager.begin(DefaultTransactionManager.java:53)
     at io.seata.tm.api.DefaultGlobalTransaction.begin(DefaultGlobalTransaction.java:104)
     at io.seata.tm.api.TransactionalTemplate.beginTransaction(TransactionalTemplate.java:175)

開啟seata服務rollback測試

雙擊 `` 啟動seata服務

業務服務console提示如下log，說明註冊成功

2020-07-25 11:08:31.599  INFO 11284 --- [eoutChecker_1_1] i.s.c.rpc.netty.TmNettyRemotingClient    : register TM success. client version:1.3.0, server version:1.3.0,channel:[id: 0xdd694462, L:/169.254.249.134:3959 - R:/169.254.249.134:8091]
2020-07-25 11:08:31.618  INFO 11284 --- [eoutChecker_2_1] i.s.c.rpc.netty.RmNettyRemotingClient    : register RM success. client version:1.3.0, server version:1.3.0,channel:[id: 0x5ece5f24, L:/169.254.249.134:3960 - R:/169.254.249.134:8091]
2020-07-25 11:08:31.624  INFO 11284 --- [eoutChecker_2_1] i.s.core.rpc.netty.NettyPoolableFactory  : register success, cost 264 ms, version:1.3.0,role:RMROLE,channel:[id: 0x5ece5f24, L:/169.254.249.134:3960 - R:/169.254.249.134:8091]
2020-07-25 11:08:31.624  INFO 11284 --- [eoutChecker_1_1] i.s.core.rpc.netty.NettyPoolableFactory  : register success, cost 263 ms, version:1.3.0,role:TMROLE,channel:[id: 0xdd694462, L:/169.254.249.134:3959 - R:/169.254.249.134:8091]

rollback接口在執行到account服務的時候會拋異常：

java.lang.RuntimeException: account branch exception
    at com.javasea.account.service.AccountService.debit(AccountService.java:34) ~[classes/:na]
    at com.javasea.account.service.AccountService$$FastClassBySpringCGLIB$$e3edd550.invoke(<generated>) ~[classes/:na]
    at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218) ~[spring-core-5.2.5.RELEASE.jar:5.2.5.RELEASE]

order服務作為account服務的調用方，會知道account服務發生了異常：

feign.FeignException$InternalServerError: [500] during [GET] to [http://account-service/debit/1002/10] [AccountFeignClient#debit(String,Integer)]: [{"timestamp":"2020-07-25T03:36:18.494+0000","status":500,"error":"Internal Server Error","message":"account branch exception","path":"/debit/1002/10"}]
    at feign.FeignException.serverErrorStatus(FeignException.java:231) ~[feign-core-10.7.4.jar:na]
    at feign.FeignException.errorStatus(FeignException.java:180) ~[feign-core-10.7.4.jar:na]
    at feign.FeignException.errorStatus(FeignException.java:169) ~[feign-core-10.7.4.jar:na]
    at feign.codec.ErrorDecoder$Default.decode(ErrorDecoder.java:92) ~[feign-core-10.7.4.jar:na]
    at feign.SynchronousMethodHandler.executeAndDecode(SynchronousMethodHandler.java:156) ~[feign-core-10.7.4.jar:na]
    at feign.SynchronousMethodHandler.invoke(SynchronousMethodHandler.java:80) ~[feign-core-10.7.4.jar:na]
    at feign.ReflectiveFeign$FeignInvocationHandler.invoke(ReflectiveFeign.java:100) ~[feign-core-10.7.4.jar:na]
    at com.sun.proxy.$Proxy89.debit(Unknown Source) ~[na:na]
    at com.javasea.order.service.OrderService.create(OrderService.java:38) ~[classes/:na]

business服務log如下：

2020-07-25 11:36:18.288  INFO 11284 --- [nio-8008-exec-4] i.seata.tm.api.DefaultGlobalTransaction  : Begin new global transaction [169.254.249.134:8091:30253423644925952]
2020-07-25 11:36:18.289  INFO 11284 --- [nio-8008-exec-4] c.j.business.service.BusinessService     : 開始全局事務，XID = 169.254.249.134:8091:30253423644925952
2020-07-25 11:36:18.627  INFO 11284 --- [nio-8008-exec-4] i.seata.tm.api.DefaultGlobalTransaction  : [169.254.249.134:8091:30253423644925952] rollback status: Rollbacked
feign.FeignException$InternalServerError: [500] during [GET] to [http://order-service/order/1002/2001/1] [OrderFeignClient#create(String,String,Integer)]: [{"timestamp":"2020-07-25T03:36:18.530+0000","status":500,"error":"Internal Server Error","message":"[500] during [GET] to [http://account-service/debit/1002/10] [AccountFeignClient#debit(String,Intege... (405 bytes)]
    at feign.FeignException.serverErrorStatus(FeignException.java:231)
    at feign.FeignException.errorStatus(FeignException.java:180)
    at feign.FeignException.errorStatus(FeignException.java:169)

storage服務的扣減庫存已經提交，因為全局事務沒成功，故觸發回滾：

2020-07-25 11:36:18.303  INFO 5924 --- [io-8010-exec-10] c.j.storage.service.StorageService       : 開始分支事務，XID = 169.254.249.134:8091:30253423644925952
2020-07-25 11:36:18.400  WARN 5924 --- [io-8010-exec-10] c.a.c.seata.web.SeataHandlerInterceptor  : xid in change during RPC from 169.254.249.134:8091:30253423644925952 to null
2020-07-25 11:36:18.543  INFO 5924 --- [ch_RMROLE_1_7_8] i.s.c.r.p.c.RmBranchRollbackProcessor    : rm handle branch rollback process:xid=169.254.249.134:8091:30253423644925952,branchId=30253423821086720,branchType=AT,resourceId=jdbc:mysql://localhost:3306/seata_storage,applicationData=null
2020-07-25 11:36:18.544  INFO 5924 --- [ch_RMROLE_1_7_8] io.seata.rm.AbstractRMHandler            : Branch Rollbacking: 169.254.249.134:8091:30253423644925952 30253423821086720 jdbc:mysql://localhost:3306/seata_storage
2020-07-25 11:36:18.618  INFO 5924 --- [ch_RMROLE_1_7_8] i.s.r.d.undo.AbstractUndoLogManager      : xid 169.254.249.134:8091:30253423644925952 branch 30253423821086720, undo_log deleted with GlobalFinished
2020-07-25 11:36:18.619  INFO 5924 --- [ch_RMROLE_1_7_8] io.seata.rm.AbstractRMHandler            : Branch Rollbacked result: PhaseTwo_Rollbacked

遇到的問題：

console一直提示如下error log：

00:46:38.070 ERROR 10652 --- [imeoutChecker_2] i.s.c.r.n.NettyClientChannelManager - no available service 'default' found, please make sure registry config correct
00:46:47.729 ERROR 10652 --- [imeoutChecker_1] i.s.c.r.n.NettyClientChannelManager - no available service 'default' found, please make sure registry config correct

一直百事不得其解。後面突然發現會不會是jar包問題。

查看在父項目的pom配置：

<!-- 分佈式事務seata包 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <version>2.2.1.RELEASE</version>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-all</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-spring-boot-starter</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>

到本項目分析pom.xml的依賴關係，發現jia包竟然是1.1.0的，在父項目不是引入的1.3.0嗎？

去文檔中查找發現1.1.0是默認 spring-cloud-starter-alibaba-seata 2.2.1.RELEASE 內嵌的，也就是pom依賴關係基礎問題。

先不管pom依賴的繼承問題。將pom依賴分別添加到子項目即可。

然後重啟，RM註冊成功：

00:49:17.541 INFO  13260 --- [eoutChecker_1_1] i.s.c.rpc.netty.NettyPoolableFactory - NettyPool create channel to transactionRole:TMROLE,address:169.254.249.134:8091,msg:< RegisterTMRequest{applicationId='lmwy-flow-longxiaonan', transactionServiceGroup='my_test_tx_group'} >
00:49:17.557 INFO  13260 --- [eoutChecker_1_1] i.s.c.r.netty.TmNettyRemotingClient - register TM success. client version:1.3.0, server version:1.3.0,channel:[id: 0x1d35034a, L:/169.254.249.134:9977 - R:/169.254.249.134:8091]
00:49:17.557 INFO  13260 --- [eoutChecker_1_1] i.s.c.rpc.netty.NettyPoolableFactory - register success, cost 8 ms, version:1.3.0,role:TMROLE,channel:[id: 0x1d35034a, L:/169.254.249.134:9977 - R:/169.254.249.134:8091]
00:49:32.077 INFO  13260 --- [.12.11.240_8848] c.a.n.c.config.impl.ClientWorker - get changedGroupKeys:[]
00:49:38.880 INFO  13260 --- [.12.11.240_8848] c.a.n.c.config.impl.ClientWorker - get changedGroupKeys:[]
00:50:01.684 INFO  13260 --- [.12.11.240_8848] c.a.n.c.config.impl.ClientWorker - get changedGroupKeys:[]

本文項目地址：https://github.com/longxiaonan/springcloud-demo

參考：

http://seata.io/zh-cn/docs/ops/deploy-guide-beginner.html

https://sourcegraph.com/github.com/seata/seata-samples@master/-/blob/springcloud-nacos-seata/README.md

概述
